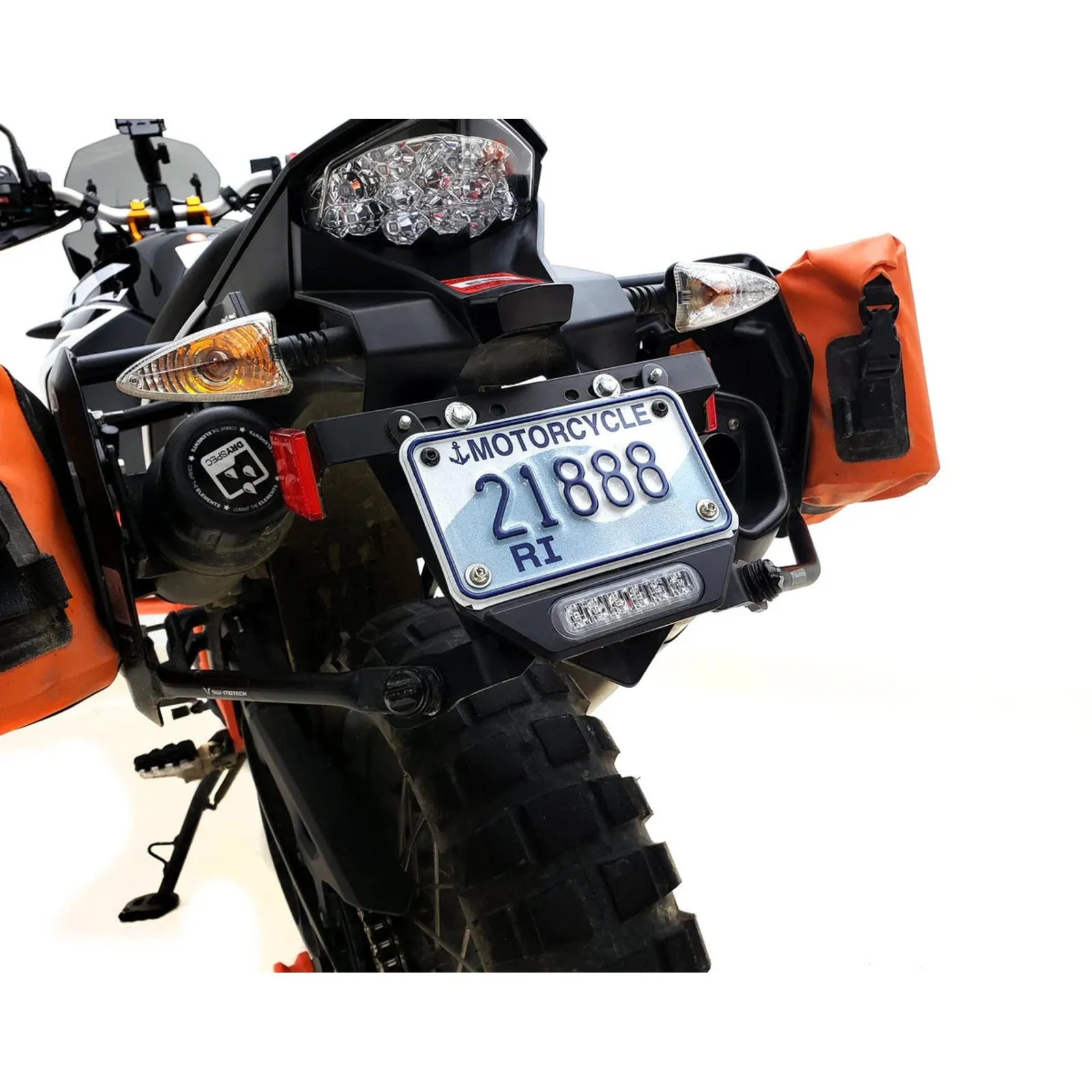

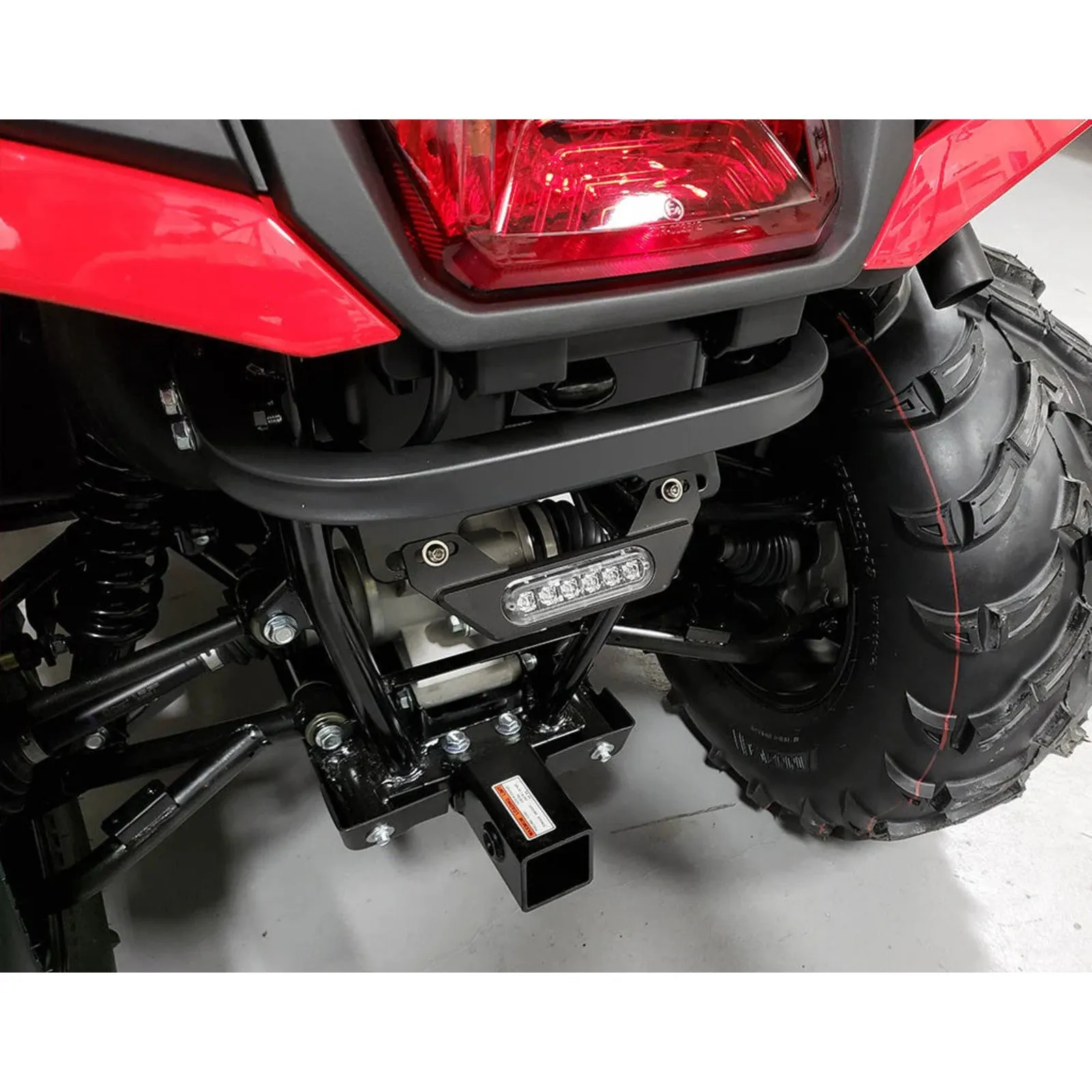

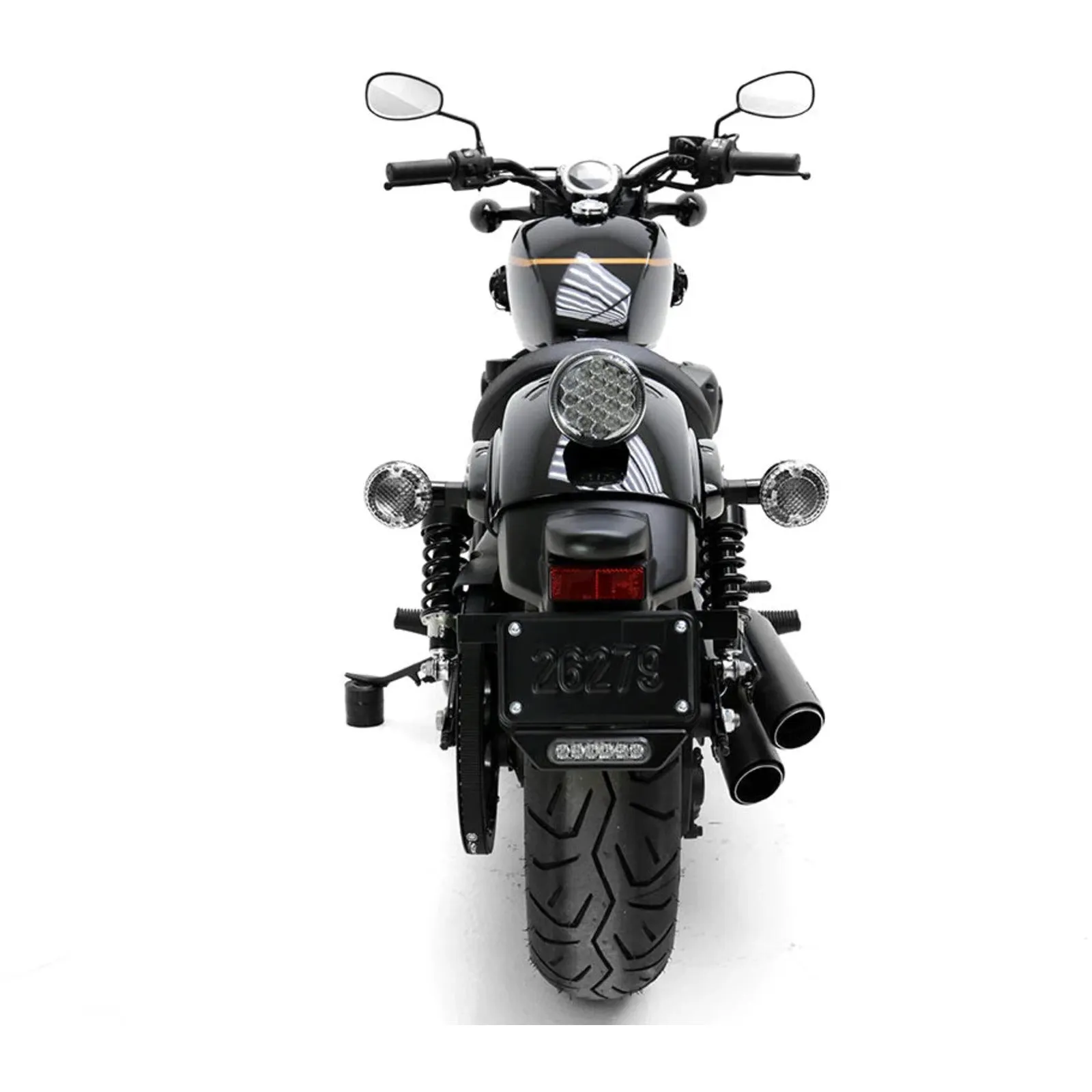

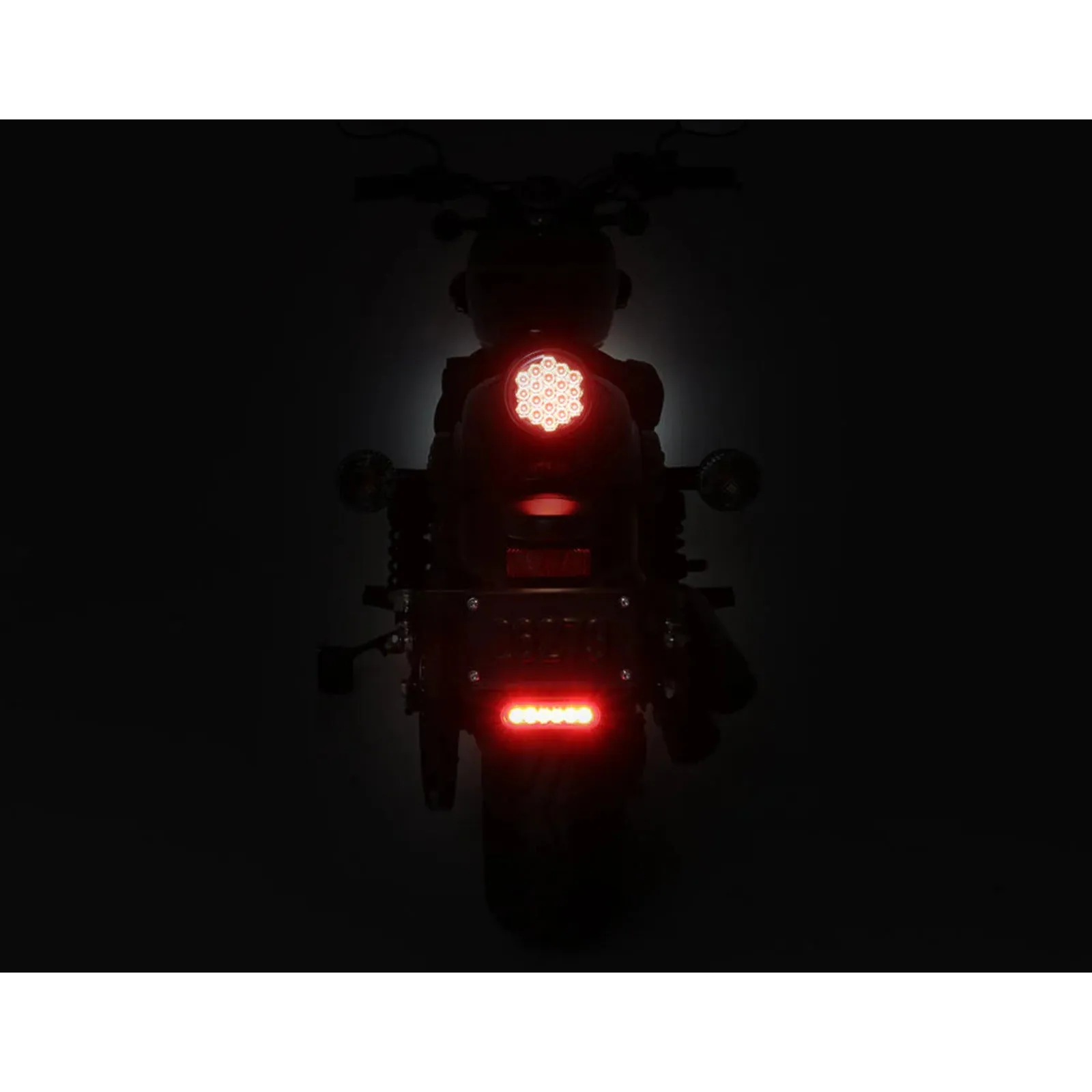

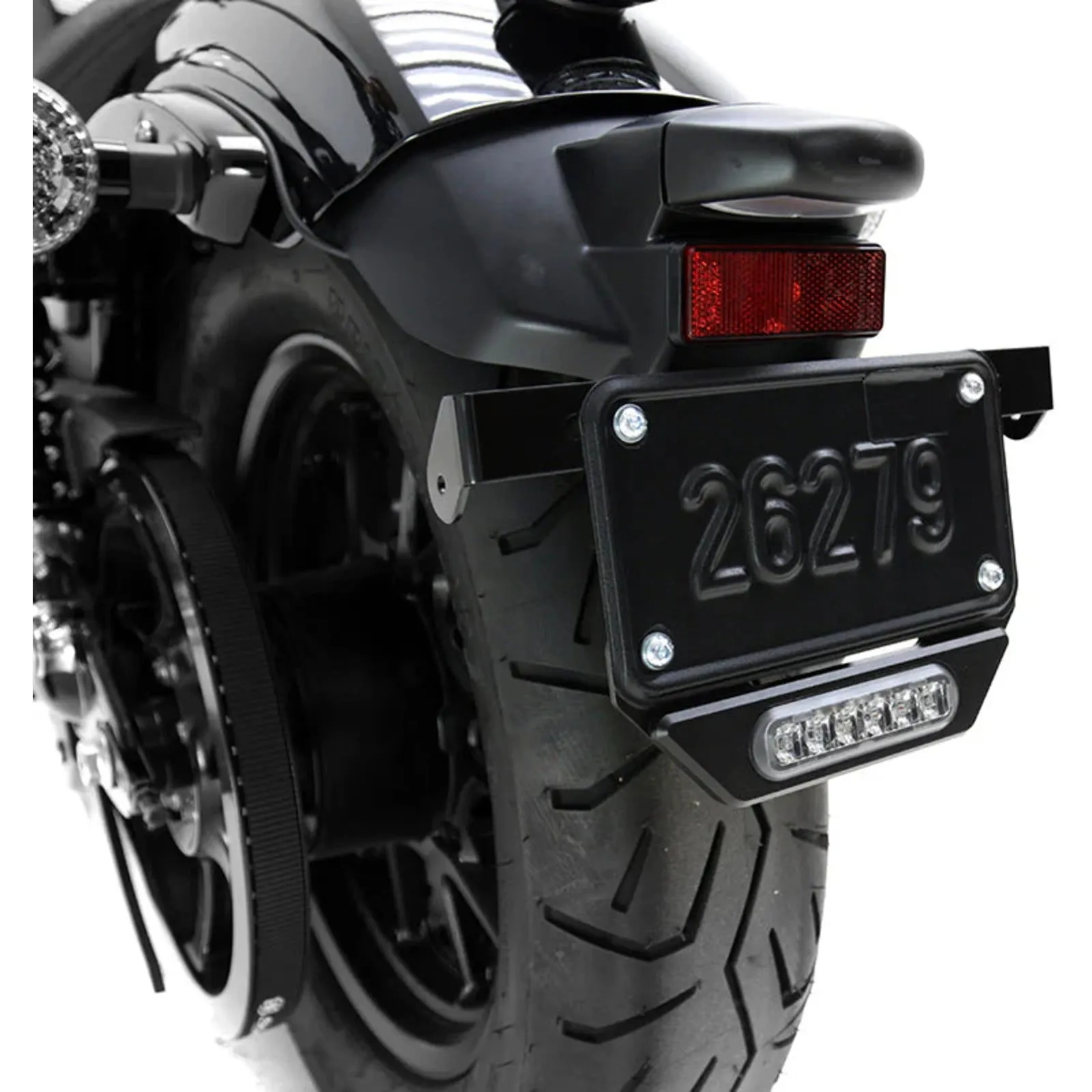

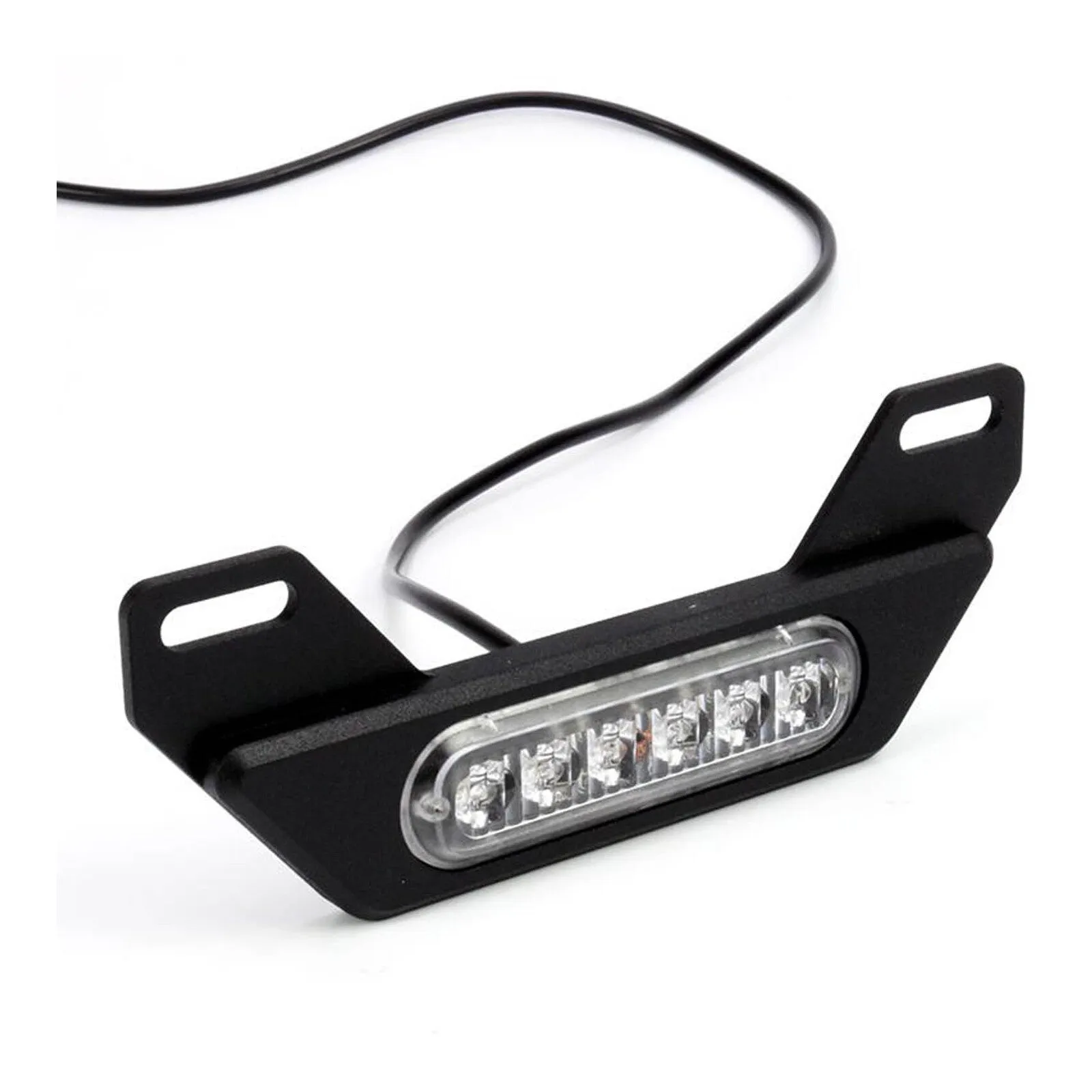

This Auxiliary LED Brake Light Kit was designed to mount a single B6 Pod above or below your license plate, re-using the existing plate mounting points.

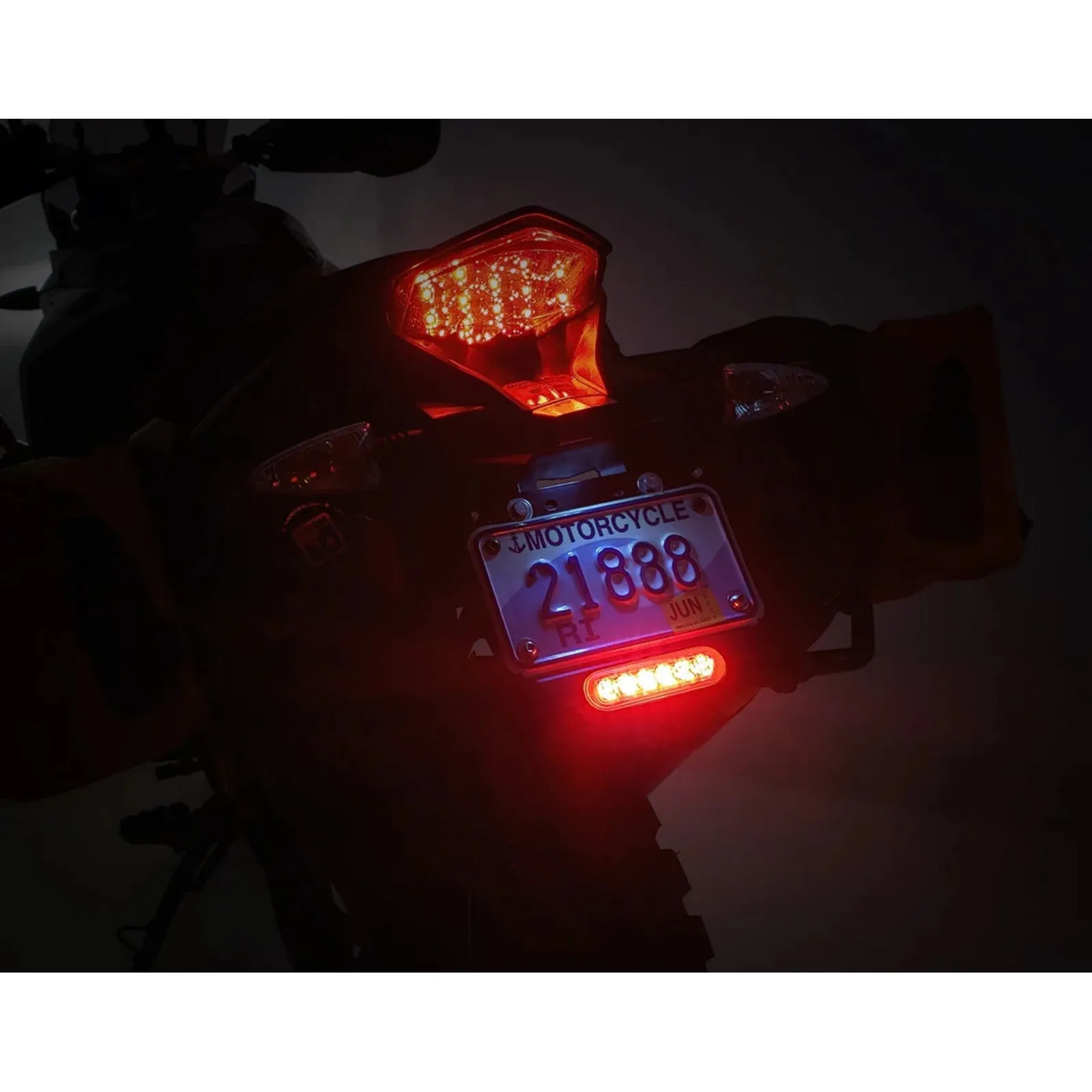

Purpose-built to create the most amount of light from the smallest, most low-profile, housing possible, the B6 is unbelievably bright but will practically disappear once installed on your plate. Complete with a waterproof micro connector and included posi-taps, the B6 will plug-n-play directly to the DENALI CANsmart controller or connect into any vehicle brake light circuit.

The B6 is the optimum auxiliary brake light to add to the CANsmart™ Controller. Connecting to the CANsmart™ enables programmable flash pattern brake light and deceleration activated auto brake light functionality making the B6 the brightest and most feature-rich auxiliary brake light on the market.

Features:

• Dual Circuit: Running and brake
• 180-degree viewing angle
• Six high power LEDs
• Low 6 watt power consumption
• Low profile design
• Easy to connect to the vehicles brake circuit

Specifications:

• Power Draw: 0.5 Amp
• Voltage: 12V DC

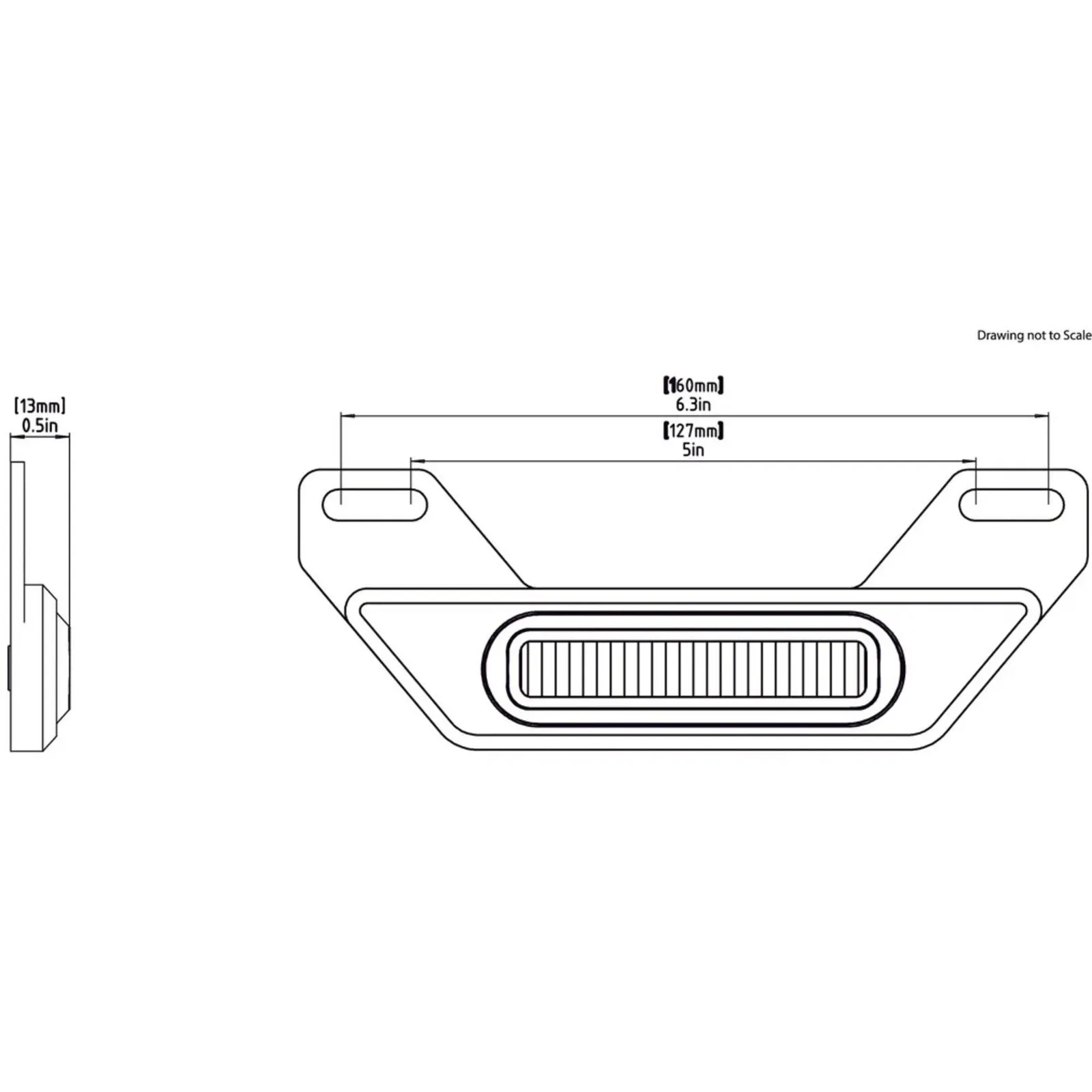

• Size: 4.4" x 1.1" x 0.42"
• Raw Lumens: 870
• IP67 Waterproof

Additional Features with DENALI CANsmart™ Controller

• Programmable deceleration activated brake light
• Programmable flash pattern brake light
• Plug & play waterproof connection to CANsmart™ Controller

What's In The Box?

• (x1) DENALI B6 Auxiliary Brake Light
• (x2) M6 Mounting Hardware

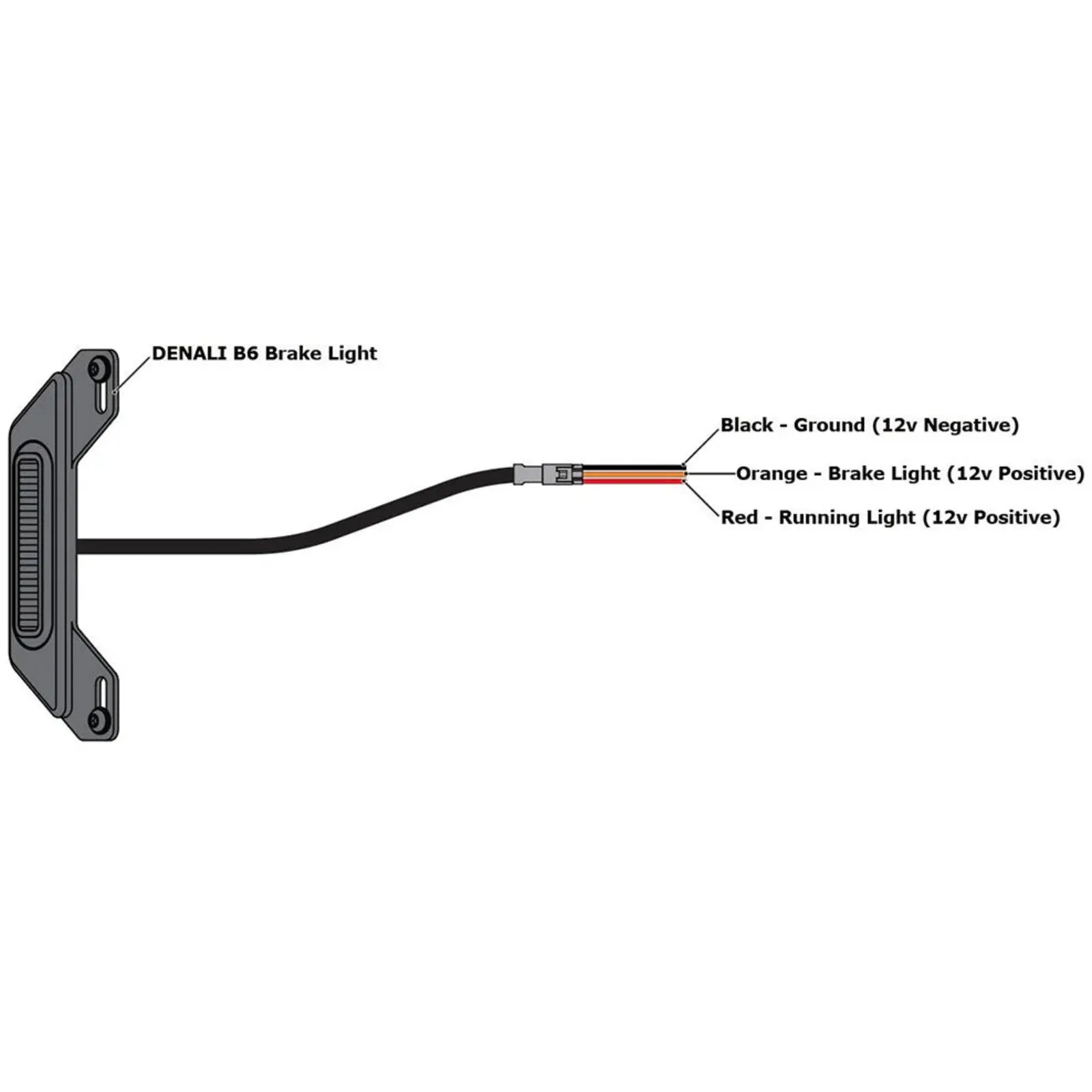

• (x1) Wiring Pigtail
• (x3) Posi-Taps
